GL 1000 ZPZ

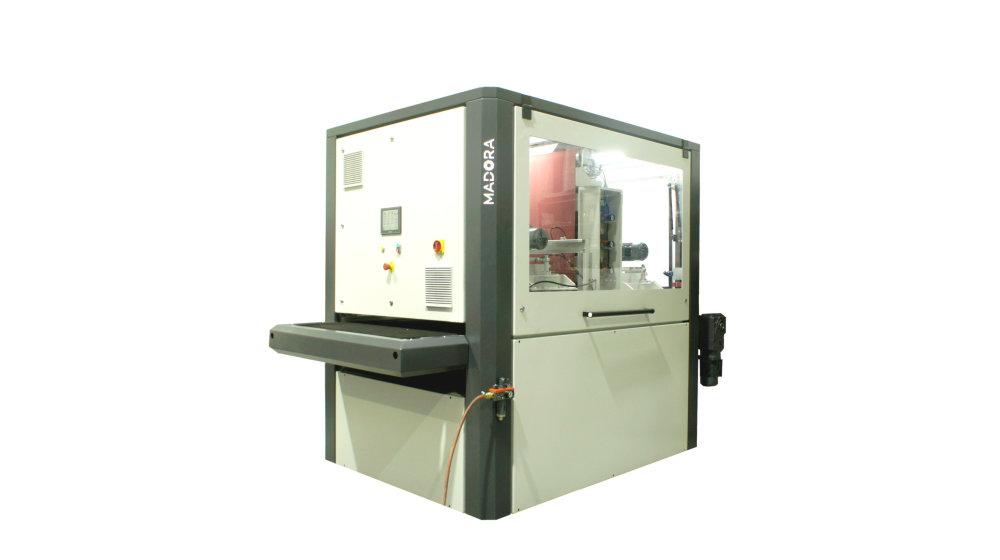

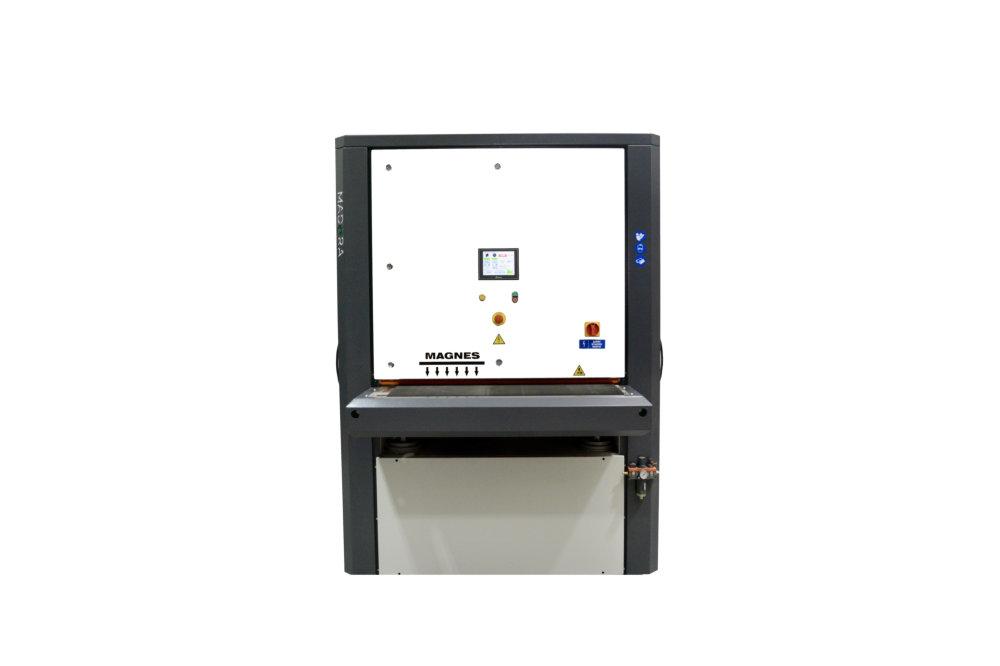

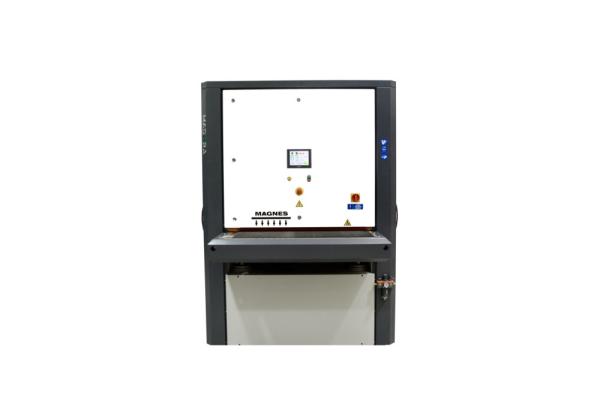

Product description

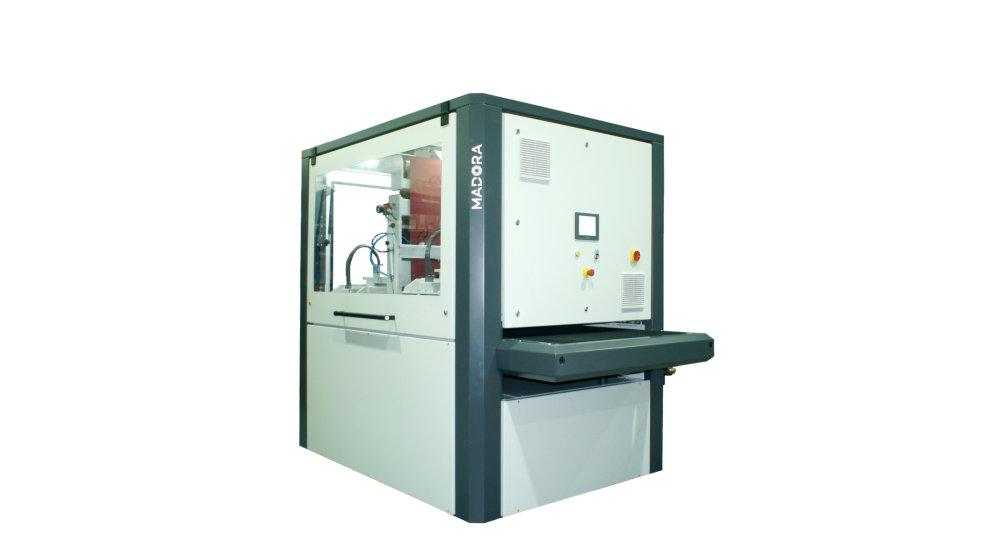

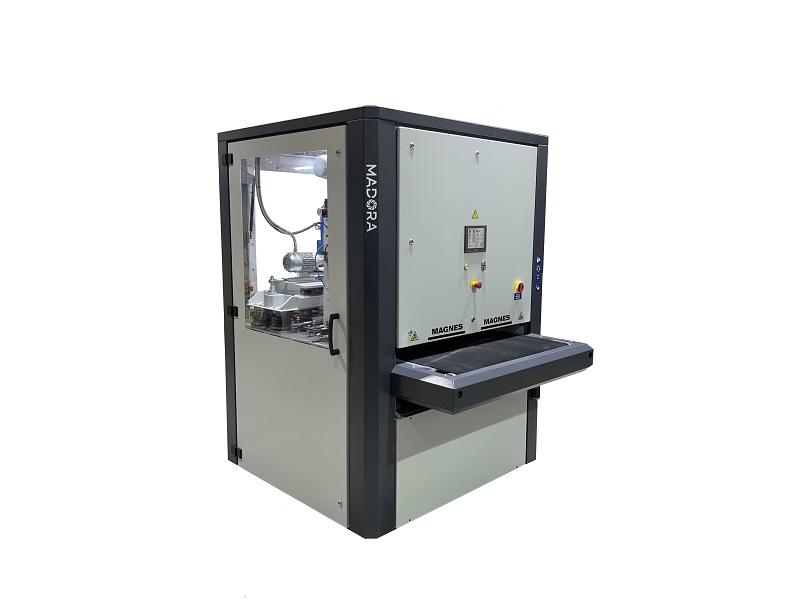

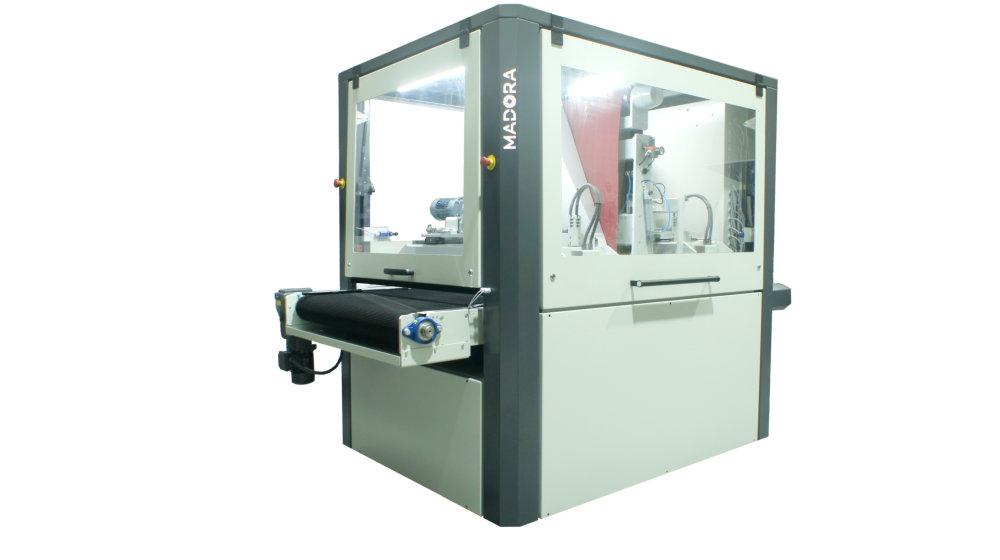

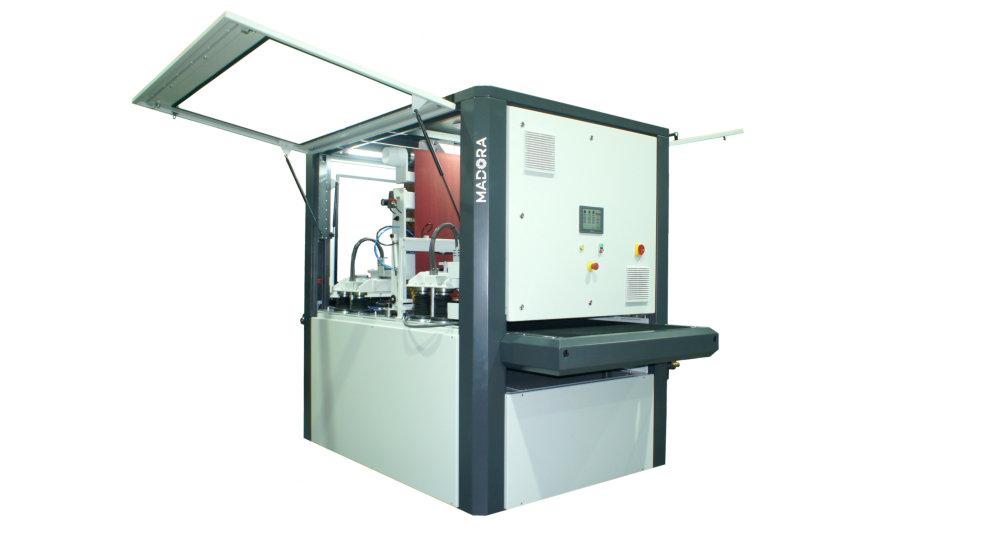

The GL 1000 ZPZ deburring machine is equipped with an abrasive belt unit and two "Z" type oscillating and rotating units. The layout of the units enables highly versatile use of the machine after machining processes such as plasma cutting, laser cutting, etc. The purpose of the abrasive belt is to collect excess material during the deburring or grinding process. It is the perfect solution whenever the so-called "flashes" and material burns occur, for example after laser cutting. The abrasive belt unit allows you to use various types of sandpaper for specific applications, purposes and results. The "Z" type unit, which is also used in the GL1000 PZZ, makes it possible to finish the workpiece according to the customer's requirements in the final machining stage, for example by deburring or heavy edge rounding, depending on the tools used.
Technologies:

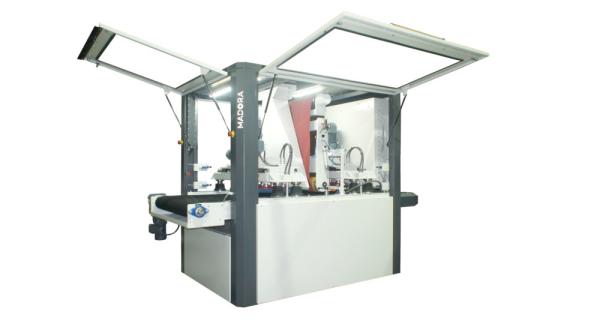

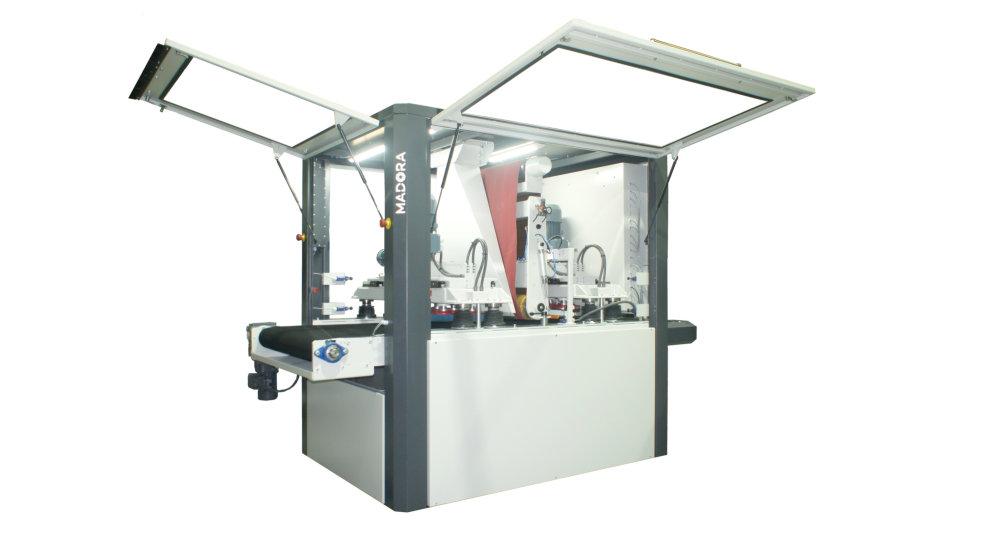

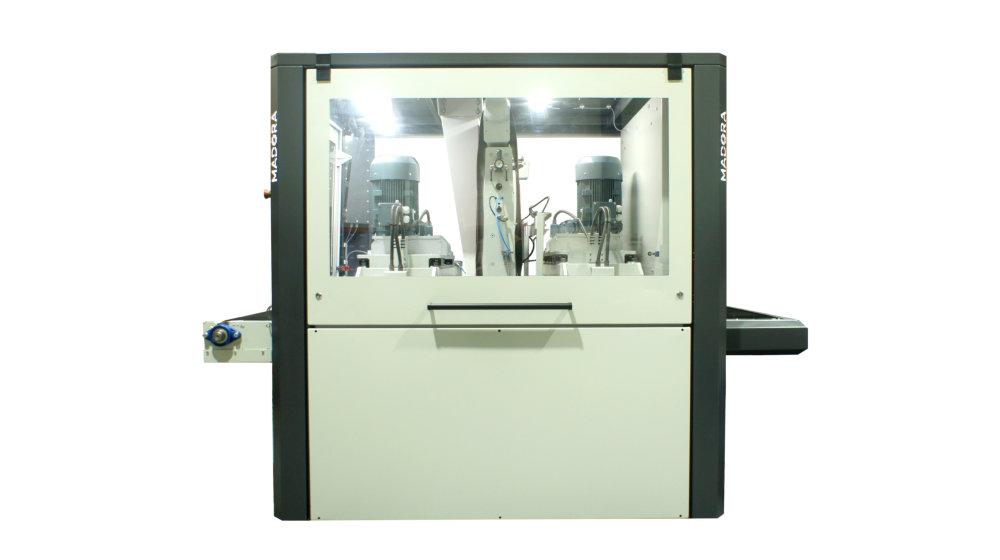

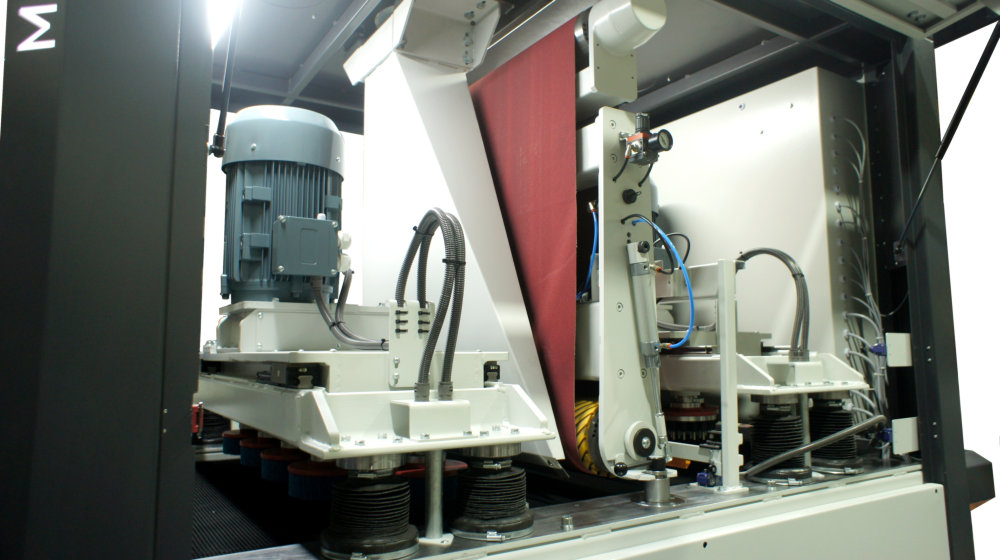

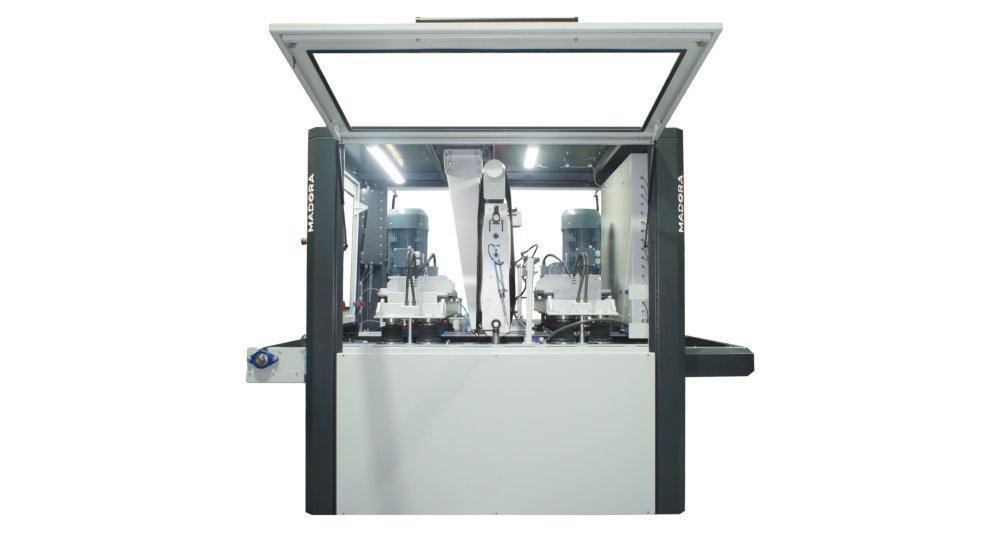

The GL 1000 ZPZ is equipped with three units:
the first is a "Z" type oscillating and rotating unit, followed by an abrasive belt unit and, finally, another "Z" type oscillating and rotating unit. The machining units have a machining range of 0.5 to 50 mm. The "Z" type units can also be equipped with an inverter so that the operator can seamlessly adjust the tool rotation speed to achieve the desired machining effect.
Each unit can be controlled independently, allowing the operator to decide which machining processes to apply to the workpiece.
Technical specification
|
NAME |
UNIT |
Gl1000-ZPZ |
|
|
MACHINE FUNCTIONS |
|||
|
Descaling (deslagging) |
YES |
||
|
Surface grinding |
YES |
||
|
Deburring |
YES |
||
|
Edge rounding |
YES |
||
|
Oxide removal |
YES |
||
|
OPERATING PARAMETERS |
|||
|
Feed rate |
m/min |
0,5-4 |
|
|
Machining thickness range |
mm |
0,5-50 |
|
|
Conveyor belt width |
mm |
1000 |
|
|
Table length |
mm |
2560 |
|
|
GL1000-ZPZ DIMENSIONS |
|||
|
Width |
mm |
1600 |
|
|
Height |
mm |
2250 |
|
|
Length |
mm |
2800 |
|
|
CONTROLS |
|||
|
TFT operator panel control |
YES |
||
|
ADDITIONAL EQUIPMENT |
|||
|
300 mm wide magnetic table |
pc. /machining unit |
1-2 |
|
|
Descaling (deslagging)discs |
pc. /machining unit |
9 |
|
|
Deburring and edge rounding discs |
pc. /machining unit |
9 |
|
|
Flap discs for heavy edge rounding |
pc. /machining unit |
9 |
|
|
Oxide removal discs |
pc. /machining unit |
9 |
|
|
Magnetic plate in the table |
pc. /machining unit |
2 |
|

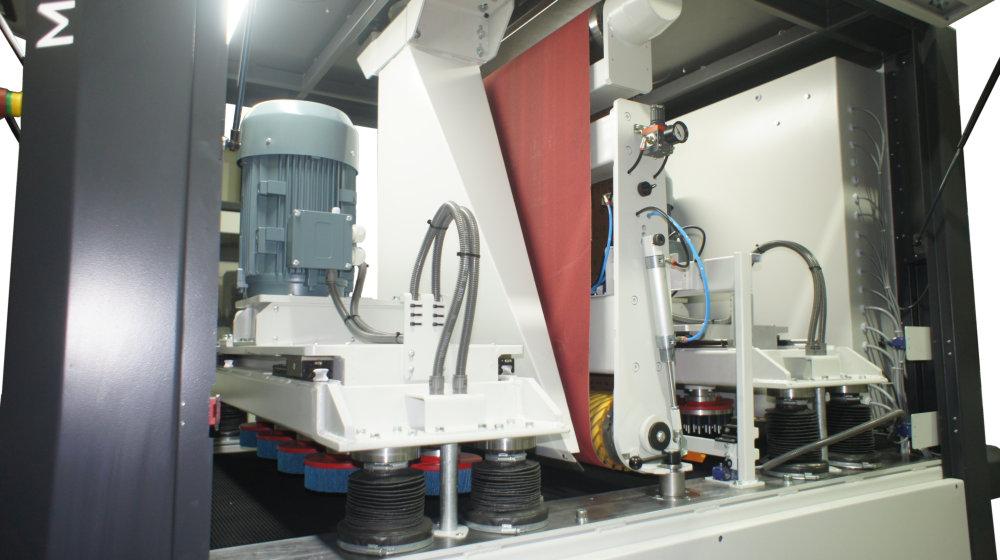

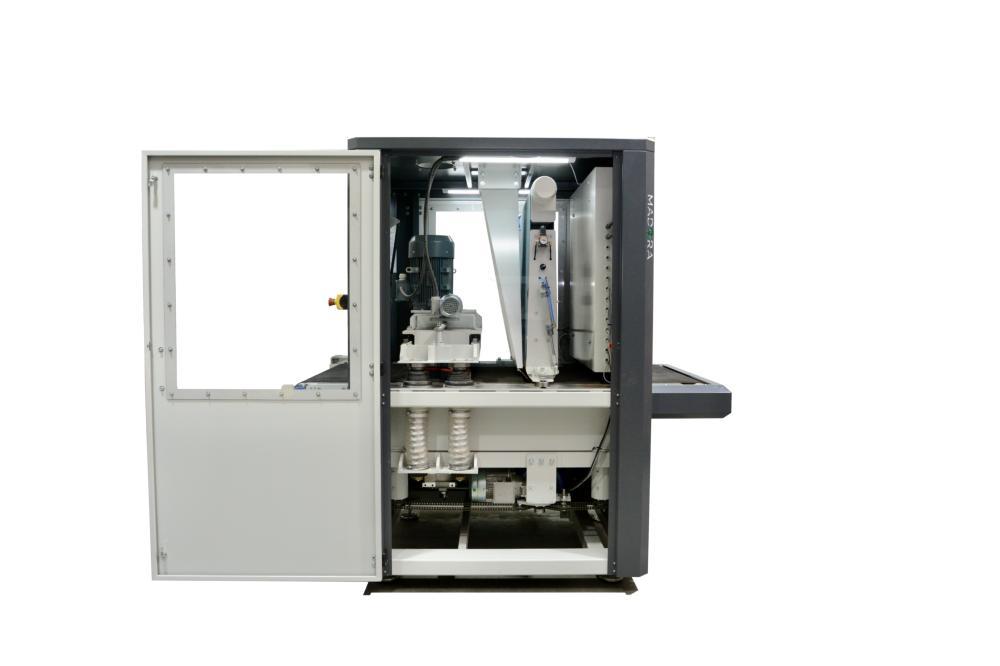

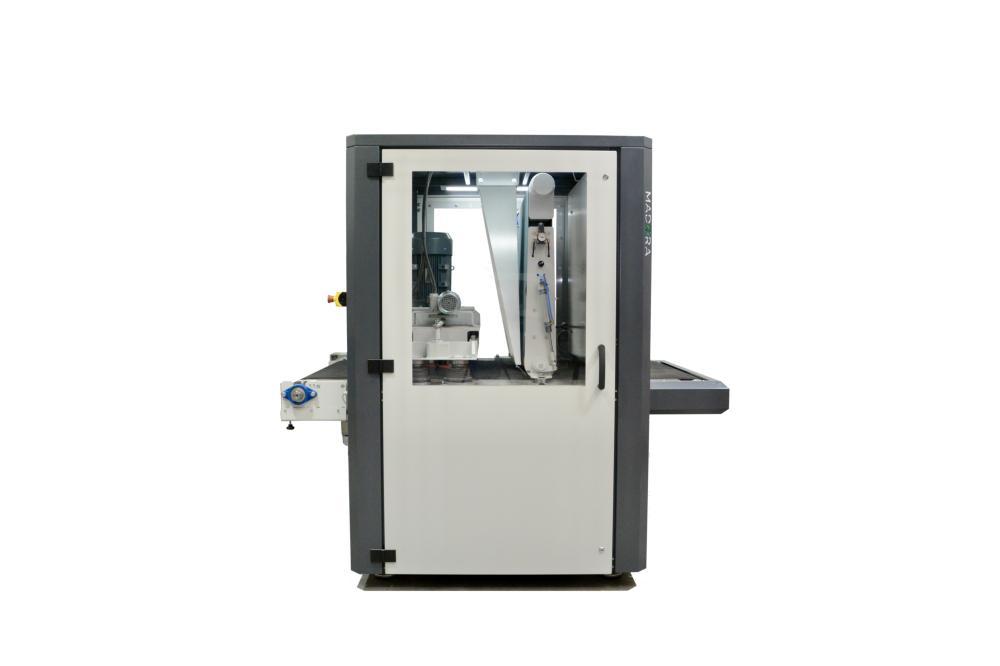

The abrasive belt unit is used for heavy burr removal, surface grinding and giving the workpiece surface the right structure. The final machining effect depends on the abrasive paper or cloth used. The abrasive belt unit is ideal for removing the so-called "flashes" after laser cutting, as well as for directional grinding, polishing, etc. During operation, the unit moves in a rotating and oscillating motion over a width of 1,000 mm.

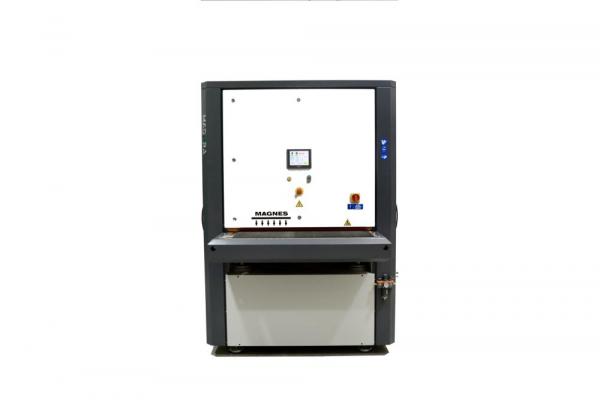

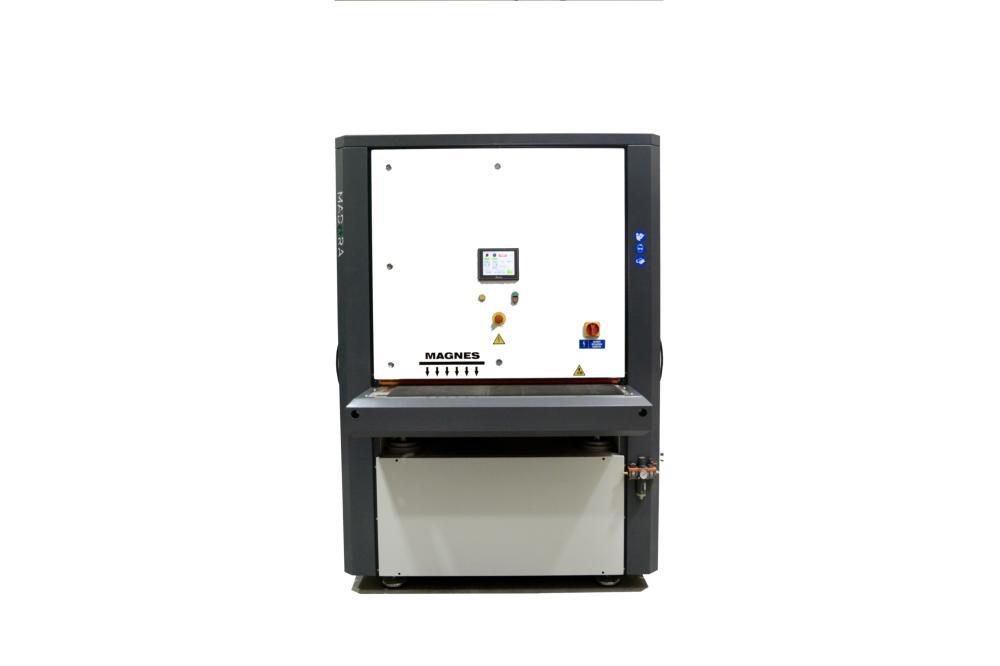

Abrasive belt unit: featured on all machines with a "P" designation, e.g. the GL1000PZ
Abrasive belt
The belt is used for grinding, deburring and deflashing
Descaling (deslagging) disc
This disk is used for the removal of heavy scale produced by plasma or oxyfuel cutting.
Deburring and edge rounding disc
Disc for light deburring after laser cutting. This disc is also used for edge rounding
Heavy edge rounding disc
Disc for removing light burrs and for performing heavy edge rounding.
Oxide removal disc
Disc for the removal of oxides from the lateral surface of workpieces after laser cutting
